HD09VR PH/PHB Highbay 12VDC PIR Sensor With Photocell And Daylight Harvesting

  • 1
  • 2
  • 3

Brand Name : HAISEN

Model Number : HD09VR-PH/PHB

Certification : UL FCC

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Power : 10-15VDC

Height : 12M max

Application : Industrial Lighting

Detection Angle Fresnel Lens : ≤120° Fersnel Lens

Warranty : 3 Years

Contact Now

The 12VDC Highbay PIR Sensor HD09VR PH/PHB with Photocell and Daylight Harvesting

Description:

Rotator & Remote control, app control for BLE version.

12VDC Input, 0-10V Dimming, with Daylight Harvesting and Photocell Function.

ONE for ALL Installations Parterning With Different Receptacles & Brackets.

Features:

Infrared Wavelength:5-14um

Installation Height:12m/39ft Max

Detection Angle:Fresnel Lens ≤120° Fersnel Lens

Warranty:3 Years

Performance Parameters:

Model NO. HD09VR

SENSOR PARAMETER

Detection Area Remote Control:25%/50%/75%/100%
Holdtime

Remote Control:5s/30s/1min/3min/5min/10min/20min/30min

Rotating switch:5s/1min/5min/10min

Daylight Threshold Remote Control:2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ 200Lux/250Lux/300Lux/350Lux/400Lux/Disable
Standby Dimming Level

Remote Control:10%/20%/30%/50%

Rotating switch:0%/10%/30%/50%

Standby Period Remote Control:0s/10s/30s/1min/5min/10min/30min/60min/+ ∞

Dusk/Dawn Sensing/ Photocell

Daylight threshold as 30lux/50lux/80lux/120lux/200Lux/ 250Lux/ 300Lux/350Lux/400Lux

Standby period as +∞ ;

Standby dimming level as 10%/20%/30%

Daylight Harvesting

1. Adjust "daylight" value higher than 50lux

2. Preset "standby period" 0S

3. press MW/PIR button 3 times till MW/PIR icons both blicking

on LCD screen, daylight harvesting function enabled. (With BLE verison, press DH button, daylight harvesting function enabled.)

Output ON/OFF,0-10V Dimming
Warm-up Period 45s

INPUT

Input Range 12VDC
Voltage Range 10-15VDC
Current <15mA
OUTPUT Signal DIM 0-10V
ENVIRONMENT Working Temp -20°C~+60°C
Storage Temp -40℃~+80℃ Humidity: 85%(non-condensation)
CERTIFICATE & STANDARDS Environmental Requirements In accordance with CE ROHS
IP Rating IP65

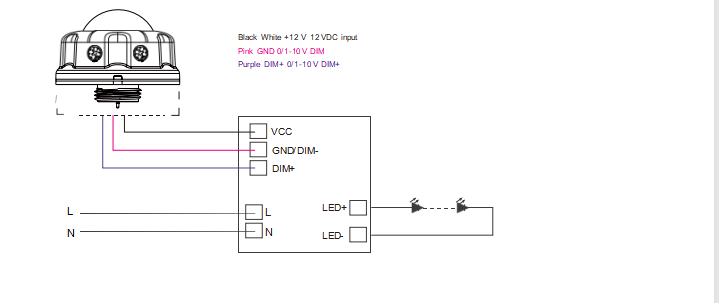

Wiring diagram:

HD09VR PH/PHB Highbay 12VDC PIR Sensor With Photocell And Daylight Harvesting

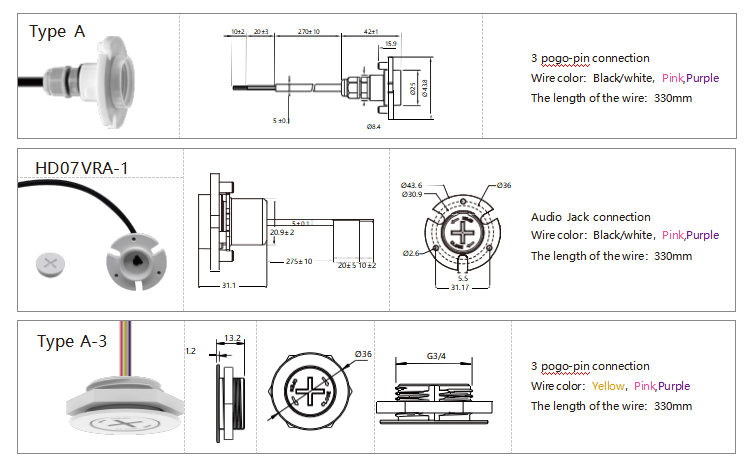

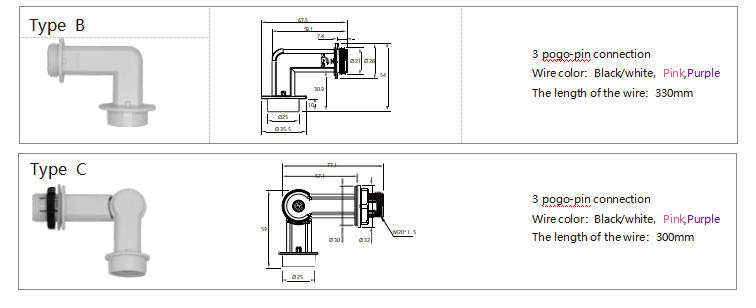

Receptacles:

HD09VR PH/PHB Highbay 12VDC PIR Sensor With Photocell And Daylight Harvesting

HD09VR PH/PHB Highbay 12VDC PIR Sensor With Photocell And Daylight Harvesting

Attention:

1. Suitable for indoor application, half/completely outdoor environment conditions might trigger the sensor.

2. Suitable for ceiling mount installation, adjust sensitivity properly if it's installed on side-wall because it gets more sensitive.

3. PIR sensor can't be placed inside any material, fresnel lens must completely exposed in air.

4. Fresnel lens of the PIR sensor must be lower than light fixture.

5. Not suitable environment if there's sudden changed temperature of airflow for PIR sensor.

6. Not suitable environment if there's shelves blocking between the sensor and presence area.

7. Detection area options may NOT working obviously because it works depends on fresnel lens, it's physically defined.

8. Detection distance performance works better when moving parallelly than moving towards to the sensor.

9. Daylight testing delivered in bright day without shadow or specially designed lampshade or lens.

10. Dimming performance differs when connected to different drivers; If the driver can't completely turn OFF, sensor can't either.

11. Input power voltage must be stable with float less than 10%.

12. The first time powered ON sensor, light will be ON 100% for about 45S then dims to standby level or OFF.

13. Distance detection is delivered by testing person about 165cm in open area as reference, the result differs by size and speed of moving objects, mountng height and real-life situation.

HD09VR PIR Highbay Sensor Series.pdf

*Please contact us for more details*
